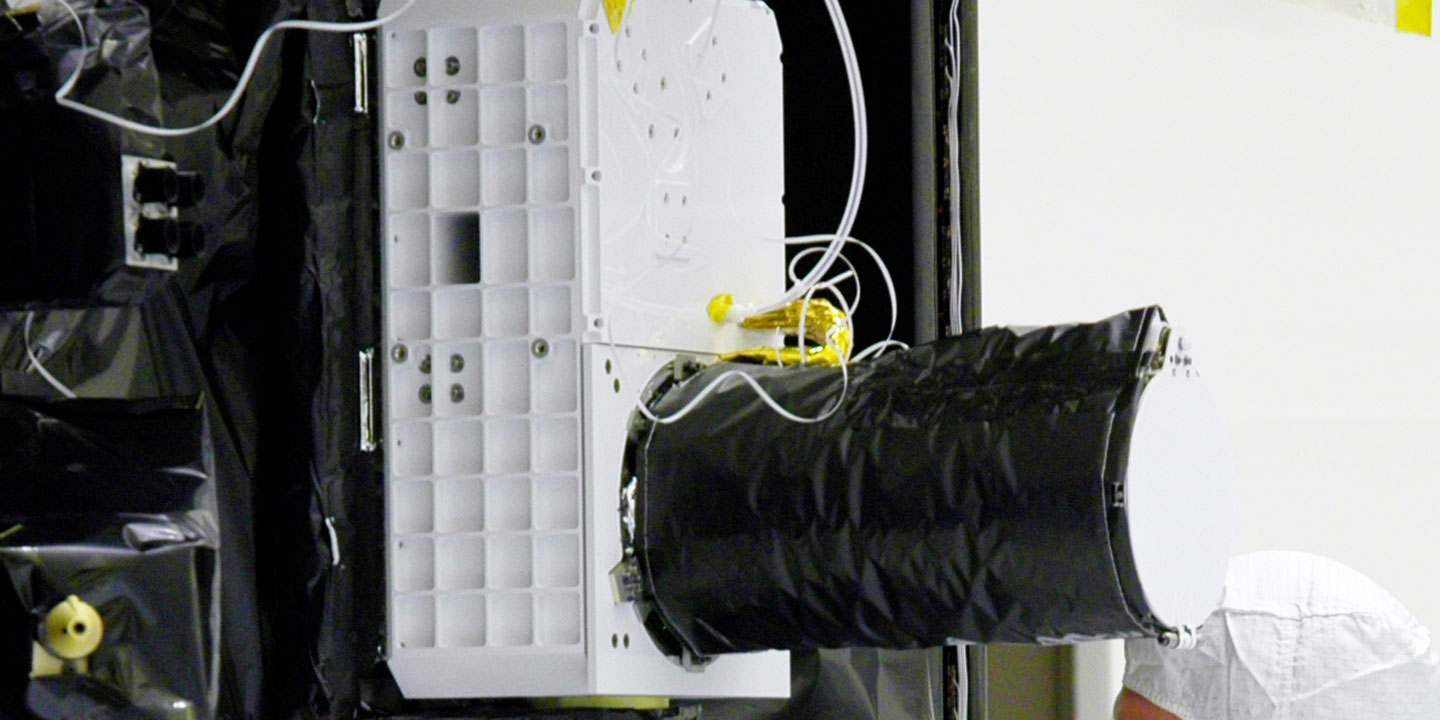

The Compact Reconnaissance Imaging Spectrometer for Mars is known as CRISM. CRISM uses detectors that see in visible, infrared and near-infrared wavelengths to map the kind of mineral residue that appears where water once existed.

Tech Specs

Main Job To search for the residue of minerals that form in the presence of water.
Location Orbiter instrument deck
Mass ~72.5 pounds (32.92 kilograms)
Power 44.4 - 47.3 Watts during normal operations (~16 Watts during standby)
Size The main part of the instrument - the Optical Sensing Unit (OSU) - would fit in a box 30.4 x 22.3 x 15.4 inches (77.4 cm x 56.7 cm x 39.1 cm), including the baffle.
Data Return Typical Full Resolution Targeted (FRT) observation is 2 - 2.5 Gigabits.
Spectral Resolution Covers the spectral range from 362 - 3920 nm with a spectral sampling of 6.55 nm/channel.
Swath Width About 5.8 to 7.4 miles (9.4 to 11.9 kilometers)
Spatial Sampling 60.4 feet/ pixel from 185 miles altitude (18.4 meter/pixel at 300 kilometer altitude)
Focal Length ~17.3 inches (441 millimeters)
Focal Ratio and Field of View f/4.41; IFOV of 61.5 μrad and a FOV of ~2.06 degrees

Compact Reconnaissance Imaging Spectrometer for Mars

CRISM (Compact Reconnaissance Imaging Spectrometer for Mars) searches for the residue of minerals that form in the presence of water, perhaps in association with ancient hot springs, thermal vents, lakes, or ponds that may have existed on the surface of Mars.

Even though some landforms provide evidence that liquid water may have flowed on the surface of Mars long ago, evidence of mineral deposits created by long-term interaction between water and rock has been limited.

CRISM's visible and infrared spectrometers track regions on the dusty martian surface and map them at scales as small as 18 meters (60 feet) across, from an altitude of 300 kilometers (186 miles). CRISM reads the hundreds of "colors" in reflected sunlight to detect patterns that indicate certain minerals on the surface, including signature traces of past water.

The principal investigator (lead scientist) for CRISM is Scott Murchie from the Applied Physics Lab at Johns Hopkins University.
